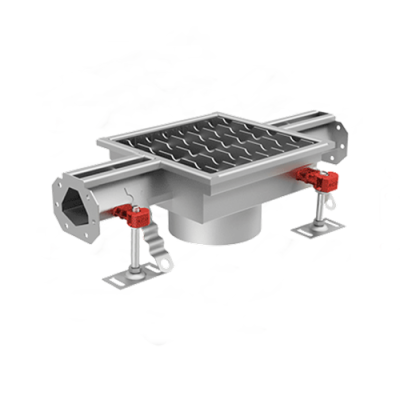

ACO Modular Slot Trench Drain

ACO Modular Slot Trench Drain systems provide effective surface water management with a focus on minimal visual impact. The system comprises modular channel units with a narrow, continuous slot opening at the surface. Here are the key features and details

Key Features

• Discreet Drainage: The primary feature is the narrow slot opening, which blends seamlessly with surrounding pavements and surfaces, offering an aesthetically superior alternative to traditional grated drains.
• Modular Design: Similar to other ACO modular trench drains, this system utilizes interconnected channel units of standard lengths for flexible configuration and easy installation.
• Variety of Channel Materials: Channels can be manufactured from:
  • Stainless Steel: Ideal for hygienic applications and areas requiring high corrosion resistance.
  • Polymer Concrete (Polycrete): Offers durability and chemical resistance.
• Slot Width Options: The width of the slot opening can vary (e.g., 8mm, 10mm, 20mm) depending on the application and hydraulic requirements.
• Load Class Suitability: Depending on the channel material and construction, ACO Modular Slot Drains can be specified for various load classes, from pedestrian to light vehicular traffic. Specific load class ratings should be verified with product specifications.
• Easy Installation: The modular nature simplifies installation, and channels often feature interlocking mechanisms for secure connections.
• Integrated Outlets: Channel units can include integrated outlet connections for easy connection to the drainage network.
• Accessories: A range of accessories is available to complement the system, including:
  • End Caps: To close the ends of the drain run.
  • Outlet Connectors: For connecting to drainage pipes.
  • Silt Traps/Sediment Baskets: To capture debris.
  • Corner and Branch Units: For creating changes in direction.
  • Inspection Access: Specific units or access points may be available for maintenance.
• Customization Options: ACO often offers customization options for slot drains, including:
  • Custom Lengths: Channels can be cut to specific lengths.
  • Custom Outlet Positions: Outlets can be placed at desired locations.
  • Built-in Slope: Channels with a pre-defined slope can be specified.

• ACO SlotDrain (Stainless Steel): A popular system offering various slot widths and channel depths in stainless steel, suitable for a wide range of applications, including hygienic environments.
• ACO Brickslot: Designed specifically for use with brick or stone pavers, providing a discreet drainage solution at thresholds and paved areas.
• ACO Slot Channel (Polymer Concrete): Offers a robust and chemically resistant option with a narrow slot opening.
• ACO Sport Slot Drain: Specifically designed for sports surfaces, featuring a slot that is safe for athletic footwear.

Materials Used for Production

• Channel Materials: Stainless Steel (AISI 304, 316L), Polymer Concrete
• Slot Materials: Typically Stainless Steel or Galvanized Steel

• Pedestrian areas and plazas
• Architectural landscaping
• Building facades and entrances
• Threshold drainage (doorways, balconies)
• Swimming pool surrounds
• Commercial kitchens and food processing areas (stainless steel options)
• Shower areas and wet rooms
• Sports facilities (e.g., running tracks)
• Public realm and urban design projects

For specific technical specifications, load capacities, dimensions, and installation guidelines for particular ACO Modular Slot Trench Drain models, please refer to the relevant ACO product catalogs or contact us.
