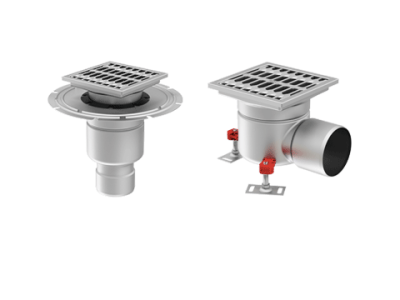

ACO Hygienic Floor Drain

ACO Hygienic Floor Drain is a floor drainage system engineered with strict hygienic design principles, suitable for use in environments demanding the highest levels of cleanliness. It has the following features and details

• Hygienic Design: Complies with hygienic design standards and guidelines (e.g., EN 1672, EN ISO 14159, EHEDG) to minimize the risk of bacterial contamination.
• Full Drainability: Designed with a sloping internal base towards the outlet to ensure complete drainage, eliminating stagnant water and potential microbial growth.
• Rounded Internal Corners: Features internal radii of at least 3 mm to facilitate thorough cleaning and prevent the accumulation of dirt and bacteria.
• Hygienic Joints: Utilizes fully welded butt joints to avoid metal-to-metal contact in non-dismantled areas, preventing bacteria from harboring in crevices.
• Crevice-Free Design: The drain body is typically deep-drawn with smooth contours, eliminating areas where bacteria can reside.
• Seamless Integration: Designed for a smooth transition with the surrounding floor, minimizing the risk of floor cracks that could harbor microorganisms.
• Easy to Clean and Maintain: Manufactured from non-porous stainless steel, allowing for easy cleaning and disinfection. The design facilitates thorough inspection and cleaning.
• Corrosion Resistance: Made from high-grade stainless steel (typically AISI 304 or 316L) for excellent resistance to corrosion from water, chemicals, and temperature variations.
• Slip-Resistant Grates: Various grate options are available with slip-resistant surfaces to enhance safety.
• Variety of Sizes and Outlets: Available in different sizes and with vertical or horizontal outlet options to suit various flow requirements and installation conditions.
• Adjustable Height Options: Some models offer adjustable height to accommodate different floor constructions and waterproofing membranes.
• Optional Accessories: Features like debris strainer baskets and trap primers can be integrated for enhanced functionality.

• Hygienic Linear Drain: A long channel drain with a grate cover, designed according to hygienic principles, suitable for draining large areas or along specific lines.

• Hygienic Point Drain: A small, single drainage point with a grate cover, designed according to hygienic principles, suitable for draining specific spots.

• Kerbed Channel: A channel drain with raised edges (kerbs) to prevent water and debris from flowing into adjacent areas.

• Slot Channel - Hygienic Version: A channel drain with a narrow slot opening on top, designed to be hygienic and blend seamlessly with the floor surface.

• Stainless Steel: Primarily uses AISI 304 or AISI 316L grade stainless steel due to its high corrosion resistance, ease of cleaning, and hygienic properties.

• Food and beverage processing plants

• Commercial kitchens

• Pharmaceutical and cosmetic manufacturing facilities

• Hospitals and laboratories

• Breweries and bottling plants

• Chilled warehouses and cold rooms

• Other areas requiring high hygiene standards

For specific technical specifications such as dimensions, drainage capacity, material grades, and installation details for each model, please refer to the product catalog or contact us.

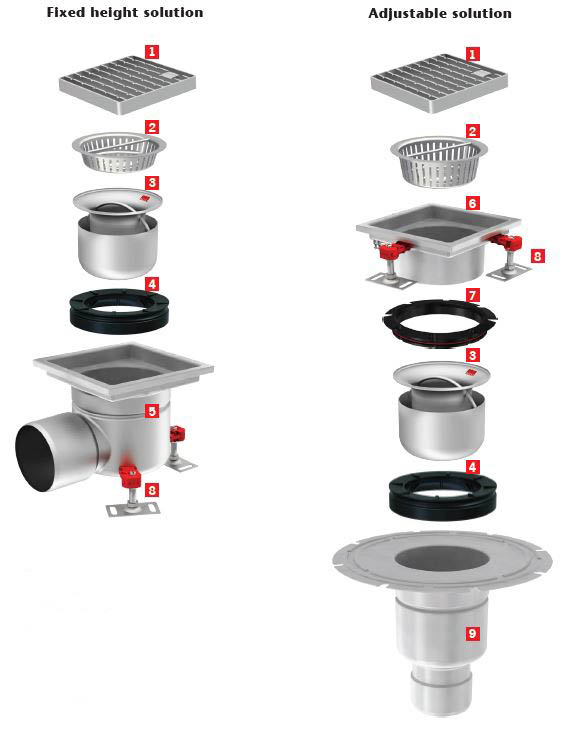

Vertical and Horizontal Solutions 1. Grates 2. Silt Basket 3. Optional foul air trap 4. Standard foul air trap support 5. ACO Floor Drain body horizontal outlet 6. Floor drain top 7. Friction ring 8. ACO EasyFix leveling feet 9. ACO Floor Drain body vertical outlet
