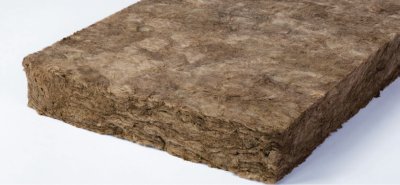

THERMAFIBER® SAFING

THERMAFIBER® SAFING is a mineral wool insulation product specifically designed for firestopping in various construction applications. It's a key component in maintaining the fire-resistance rating of walls, floors, and other assemblies where penetrations or joints occur.

Here's a breakdown of its key features and benefits:

Key Features

• Fire Resistance: Primarily used to provide fire protection by filling voids and spaces, preventing the passage of flame and smoke. It's fire-resistant to temperatures above 2,000°F (1,093°C).
• Non-Combustible: Classified as non-combustible per ASTM E136 and CAN/ULC S114.
• Perimeter Fire Containment Systems: A crucial element in perimeter fire containment systems (as tested in full-scale ASTM E2307 systems) to prevent the interior spread of fire from floor to floor in curtain wall construction. It's used to transition between the fire-rated floor/ceiling and the curtain wall system, often in conjunction with THERMAFIBER® FireSpan® insulation.
• Penetration Firestop Systems: Used in conjunction with approved fill, void, or cavity material sealants or other approved materials to firestop penetrations by pipes, cables, and other items through fire-rated walls and floors (tested to ASTM E814 or UL 1479).
• Fire Resistance of Building Joint Systems: Used with approved fill, void, or cavity materials in construction joint systems to maintain the fire rating of the assembly (tested to UL 2079).
• Compressible: Designed to be compression-fit into openings and joints, ensuring a tight seal without the need for mechanical fasteners in many applications. It should be cut slightly larger than the opening to achieve this compression fit, leaving no voids.
• Moisture Resistant: Does not readily absorb moisture and is non-deteriorating.
• Non-Corrosive: Will not corrode steel, aluminum, or copper.
• Mold Resistant: Inhibits the growth of mold and mildew.
• Acoustical Performance: Helps enhance the sound absorption and transmission loss characteristics of the assemblies in which it is used.
• Thermal Insulation: Provides some level of thermal insulation, contributing to energy efficiency.
• Recycled Content: Typically contains a minimum of 70% recycled content.
• Contributes to Green Building Credits: Can contribute to LEED® and Green Globes® credits.
• Formaldehyde-Free Options (SAFB FF, Safing FF): Owens Corning offers formaldehyde-free versions of their SAFING products, which are UL® Environment validated and GREENGUARD Gold certified, contributing to better indoor air quality.

Applications

• Perimeter fire containment in curtain wall systems.
• Firestopping penetrations through fire-rated walls and floors for various services (cables, pipes, etc.).
• Sealing construction joints in fire-rated walls and floors.
• Creating firebreaks in various assemblies.

Installation

• Typically cut slightly larger than the opening or joint.
• Compression-fitted into the space to create a tight seal, ensuring no gaps or voids are present.
• In penetration and joint systems, it is used in conjunction with approved firestop sealants or other materials as specified in the UL or Intertek listings.
• For perimeter fire containment, it's installed between the fire-rated floor slab edge and the spandrel insulation (like FireSpan®).

For detailed technical specifications, R-values, installation guidelines, and the specific UL and Intertek listed assemblies in which THERMAFIBER® SAFING is approved, always refer to the official product data sheets and UL/Intertek directories from us.
