Aerosol Unit set

Aerosol Units (FI-AUCA2) are lightweight, handheld devices that use specialized aerosol technology (containing potassium nitrate) to suppress fires. The device releases a form of tiny solid particles suspended in a gas. These particles interfere with the fires chemical chain reactions, interrupting the combustion process. Even though the Aerosol units will not deplete oxygen levels, the gas released can reduce the concentration of oxygen in the fire area, which further suppresses the flames.

ENVIRONMENTALLY FRIENDLY

• Ecologically safe and environmentally friendly, harmless to humans or animals.

TESTS

• UL 2775, EN15276-1, ISO15779, NFPA2010, EPA SNAP

DIMENSIONS & SPECIFICATIONS

Art. no: FI-AUCA2
Dimensions: 430 x 370 x 160mm
Weight: 7 kg
HS code: 84241000
COO: The Netherlands

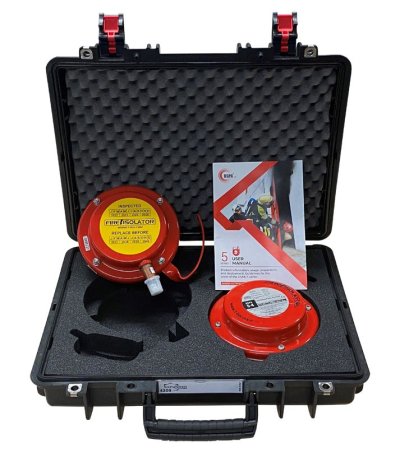

• Delivered in Heavy Duty case
• Serviceable lifetime of 15 years
• Storage between +5°C / +40°C max. humidity 80%
• Volume coverage: up to 45M3 (1400ft3)
• Does not deplete oxygen levels
• UL 2775, EN15276-1, ISO15779, NFPA2010, EPA SNAP
• Ecologically safe and environmentally friendly
• (O.D.P.=0, G.W.P.=0)
• Harmless to humans and animals

HOW TO USE

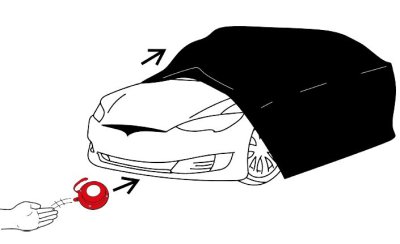

Straighten the far ends of the pins and pull the pin out. You will now hear a click. The unit is now activated and will start producing aerosol after a 8 second delay. Within 25 seconds, the unit will be discharged. The hold time (the time before re-ignition) depends on the leakage and the amount of gr/m3 that is inserted. The average hold time is 30 minutes. The smaller the volume (in M3) of the space, the longer the hold time will be. Keep a safe distance. Close off the space with the blanket after deployment.

Benefits and Features

The Aerosol Unit is a lightweight, hand-held device designed for first responders in fire situations, primarily for Class A, B, and C fires. It provides a rapid and effective method to suppress flames by reducing heat and limiting the need for water or foam, thereby minimizing damage to structures and contents. Once activated and thrown into the fire zone, the unit automatically disperses a fine aerosol mist, significantly suppressing or extinguishing the flames depending on the volume of the space.

The Aerosol Unit is engineered to be highly effective in confined spaces, with a coverage volume of up to 45m³ (1400ft³). Unlike conventional suppression methods, it does not deplete oxygen levels, ensuring that it is safe to use in enclosed areas.

Additionally, the Aerosol Unit leaves little to no residue, making post-fire cleanup efficient and hassle-free.
Manufactured in The Netherlands, the units meet the highest safety and environmental standards, including
UL 2775, EN15276-1, ISO15779, NFPA2010, and EPA SNAP. Our Aerosol Units are ecologically safe. They have zero ozone depletion potential (ODP = 0) and zero global warming potential (GWP = 0), making it an environmentally responsible fire suppression solution.

Designed for ease of deployment, the Aerosol Unit can be quickly activated by pulling the starter cord and throwing it directly into the fire area. To maximize its effectiveness, Fire Isolator offers training on its proper use. Additionally, we provide an animated instructional video demonstrating the correct use of our Fire Isolator products, incuding the Aerosol Unit.

Other Benefits:
Serviceable lifetime of 15 years, ensuring long-term reliability.
Versatile solution: Suitable for industrial, commercial, and vehicle fire suppression.


Only for use by trained firefighters and first responders.
